AC Crossing Light Controller Kit

AC Crossing Light Controller

by Galak Electronics
Part No. VG-306
Shipping Weight: 1.4 ounce (39 grams)

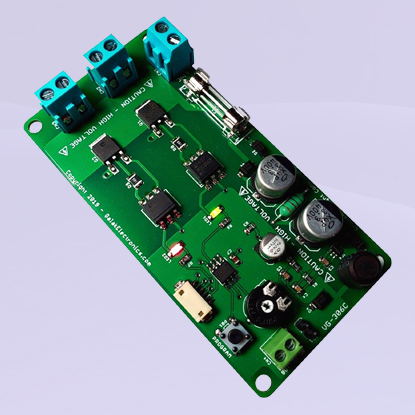

If you're looking to power up a surplus pedestrian or railroad crossing signal, the AC Crossing Light Controller is the perfect solution. Accepting standard 120VAC line voltage, this controller provides up to 480 Watts or 4 Amps of current per channel and will drive full-sized LED and incandescent crossing lights.

The unassembled kit includes instructions (including schematic and parts placement) and all the components to build one complete AC Crossing Light Controller. A soldering iron, solder and a pair of cutters are required for assembly.


AC Crossing Light Controller Kit:

$19.99

Qty



AC Crossing Light Controller Kit
(Built and Tested):

$24.49

Qty





FEATURES:

  • User selectable time delay from 5 seconds to 60 seconds, (0.2 to 2 seconds for railroad crossing).
  • Separate fixed time for "flashing" don't walk light (0.25 seconds x 10).
  • User selectable setting for either pedestrian or railroad crossing operation.
  • On board crosswalk button as well as an external connection for interactive operation.
  • Independent outputs channels for operating LEDs or Incadescent lamps at the input voltage.
  • Onboard LEDs to show current output states.
  • Compatible with virtually all types of 120VAC pedestrian or railroad crossing lights.

SPECIFICATIONS:

  • Supply Voltage: 90VAC to 120VAC
  • Output Rating: 120VAC @ 4A per channel (fused at 5A)
  • Input Connector: 14-26AWG, 250VAC at 16A
  • Output Connectors: 16-26AWG, 125VAC at 10A
  • Delay Range: 5-60 seconds (pedestrian crossing), 0.2 to 2 seconds (railroad crossing)
  • Board Dimensions: 3.94" x 1.97" (10 cm x 5.0 cm)
  • Board Material: 0.062" (1.6 mm) FR-4, with green solder mask and silk screen
  • Finished Weight: 1.4 ounces (39 grams)

IMPORTANT NOTICE:
Please observe all applicable electrical wiring codes when utilizing this product. Additionally, this device is fused with a 5A/250VAC fast acting fuse. Replace only with an equally rated UL approved fuse. The user understands that Galak Electronics is not liable for any damages (including shock, fire, property damage or death) due to the improper use or installation of this product. Please contact us before bidding if you have concerns about safe and proper installation of this product.


Please feel free to contact us if you have any question about this project or any othe Galak Electronics Projects.
