Dual Traffic Light Controller Kit

Dual Traffic Light Controller

by Galak Electronics
Part No. VG-303
Shipping Weight: 1.0 ounce (28 grams)

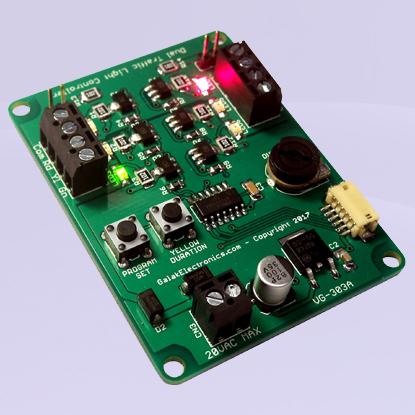

Whether your adding traffic lights to your model railroad layout or looking for an educational kit, the Dual Traffic Light Controller is the perfect solution. Accepting either AC or DC power, this controller provides up to 500mA per channel and can be configured to drive LEDs or incandescent lamps. Includes screw terminal headers for easy connection.

The unassembled kit includes instructions (including schematic and parts placement) and all the components to build one complete Dual Traffic Light Controller. A soldering iron, solder and a pair of cutters are required for assembly.


Dual Traffic Light Controller Kit:

$11.99

Qty



Dual Traffic Light Controller Kit
(Built and Tested):

$14.99

Qty





FEATURES:

  • User selectable time delay from 10 seconds to 2 minutes.
  • Separate digital control for "YELLOW" allowing for more realistic operation.
  • Wide input voltage range, accepting from 12 to 24VDC or 9 to 20VAC.
  • Independent outputs channels for operating LEDs or incadescent lamps at the input voltage.
  • Onboard LEDs to show current output states.
  • Compatible with model railroad scales including HO, N and Z.

SPECIFICATIONS:

  • Supply Voltage: 12VDC to 24VDC or 9VAC to 20VAC
  • Output Rating: 12-24VDC @ 500mA per channel (configured with current limiting resistor)
  • Input Connector: 16-26AWG, 2 position screw terminals
  • Output Connector: 16-26AWG, 4 position screw terminals
  • Delay Range: 10-120 seconds
  • Board Dimensions: 3.00" x 1.95" (7.6 cm x 4.9 cm)
  • Board Material: 0.062" (1.6 mm) FR-4, with green solder mask and top layer silk screen
  • Finished Weight: 1.0 ounce (28 grams)

Please feel free to contact us if you have any question about this project or any othe Galak Electronics Projects.
