High Intesity Rotating LED Flasher Kit (Blue)

by Galak Electronics
Part No. VG-201A-BL
Shipping Weight: 0.6 ounces (18 grams)

Based on the ever popular LED chaser kit, this miniature spin-off uses a similar technology to achieve a rotating globe effect. Add a warbling siren sound effect and you have the perfect combination of sight and sound. Comes with a 9V battery clip and speed control (9V battery not included).

The unassembled kit includes instructions (including schematic and parts placement) and all the components to build one complete Rotating LED Flasher Kit. A soldering iron, solder and a pair of cutters are required for assembly.


Rotating LED Flasher Kit (Blue):

$8.49

Qty



Rotating LED Flasher Kit (Blue)
(Built and Tested):

$9.49

Qty





FEATURES:

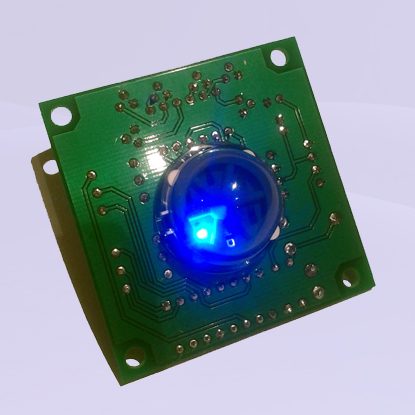

  • Large 20mm tinted LED gives the look and feel of a miniature siren globe.
  • Adjustable rotating speed from tens of milliseconds to several seconds.
  • Uses a single 9V battery and consumes just 20mA regardless of rotation speed.
  • High Intensity tinted chip LEDs create a truly stunning effect (available in 5 brilliant colors).
  • Mounted on the back of the PC board for low profile configurations.
SPECIFICATIONS:

  • Supply Voltage: 9VDC @ 20mA
  • Rotational Direction: Clockwise
  • Sequencing Rate: 24 Hz to 1.5Hz (User adjustable with trim pot)
  • Board Dimensions: 2.0" x 2.0" (5.0 cm x 5.0 cm)
  • Board Material: 0.062" (1.6 mm) FR-4, with green solder mask and silk screen
  • Finished Weight: 0.6 ounces (18 grams)

Please feel free to contact us if you have any question about this project or any othe Galak Electronics Projects.
